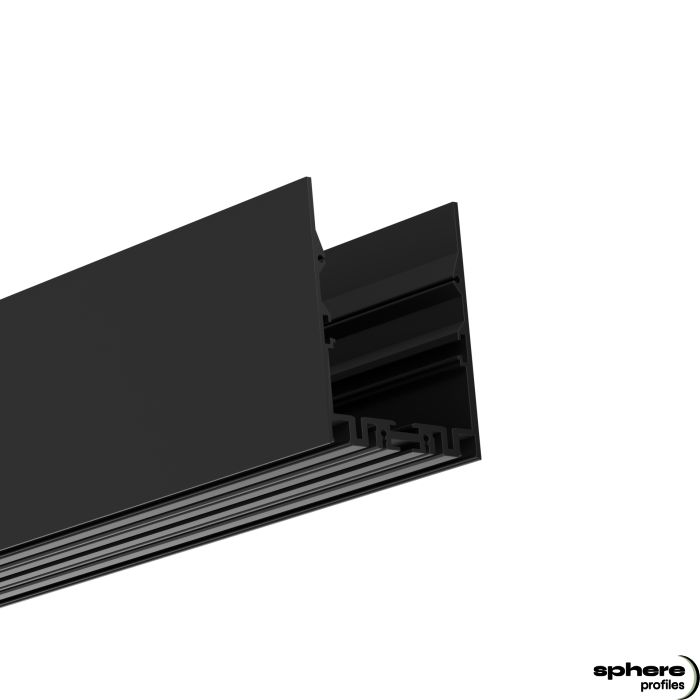

LED Luminaire profile ZENITH, 300cm, black RAL 9005 powder coated
In stock
- SKU
- 3100411
€209.08
Business customer? Sign up for personalized pricing!
Business customer? Sign up for personalized pricing!
Top Quality and Competitive Prices
Innovative and compatible Designs
High Product Availability
Proven Expertise and Industry Experience
Professional Support and Full-Service
More Information
| Special features | The LL2 LED luminaire profile UP & DOWN is made of high-quality aluminum and consists of the components LL2 and LL2.1, which are connected with a mounting clamp. It is mounted with a cable system and is ideal as a stand-alone linear luminaire for offices and shops. Flexible LED strips with a maximum width of 5 mm can be glued to the top of the profile and with a maximum total width of 40 mm on the bottom. The large surface of the profile dissipates the heat very well, which allows the use of particularly powerful LED light strips. The space between the two is used to safely store cabling and LED technology. The white profile covers made of unbreakable and flame-retardant polycarbonate (flammability classification UL94 V-2) ensure homogeneous lighting conditions and high light utilization. Matching aluminum end caps seal the side openings. For optimal adhesion of the LED strips, thorough cleaning of the inside of the profile is recommended. |
|---|---|
| Installation depth in mm | 78.9 |
| Weight | 4,490.00 g |
| Length in mm | 3,000.00 mm |
| Width in mm | 60.00 mm |
| Height in mm | 78.00 mm |
| Cooling mass | 1,497.00 g/m |
| Housing color | black |
| Housing material | Aluminum EN AW-6063-T5 Aluminum alloy |
| Outdoor | Yes |
| Guarantee in years | 5 |
